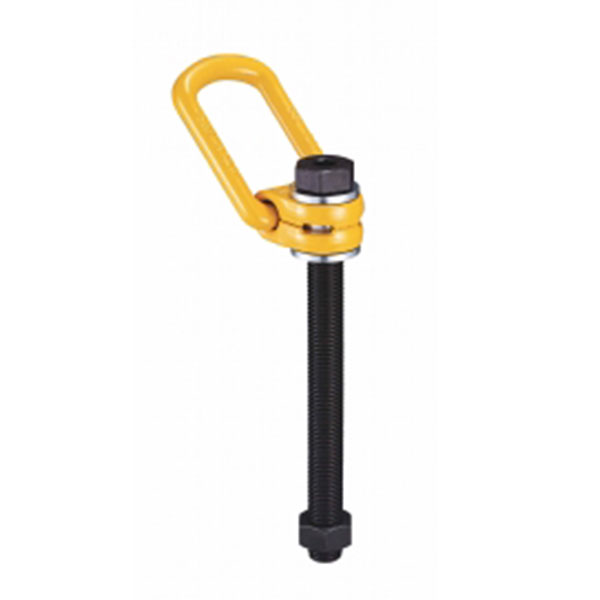

8-211L Metric Thread

Product Details:


View All Riggings & Accessories | View All Yoke Products | View All Products
  • Rotates through 360° and pivot 90°.
  • Manufactured from alloy steel, quenched and tempered.
  • Manufactured and tested in accordance with EN1677-1.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolts are Metric thread (ASME / ANSI B18.3.1M), specification is grade 12.9 alloy socket head screw per DIN EN ISO 4762.
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.

Manufacturer: Yoke

Product Type: Riggings & Accessories
